Storm detection + lightning protection Where technology meets power
n You.Active 4D® key features:
Part of the Early Streamer Emission (ESE) family of products.
The Active 4D® lightning rod can initiate its upward leader to capture the lightning up to 60μs before the strike granting you up to 99% of protection in a 262 feet radius (80m).
Its 2 integrated sensors measure the electrostatic field for a continuous analysis of data regarding upcoming storms.
When combined with Stormn You applications, it can alert a designated user when lightning strikes.
Tested in compliance with the September 2011 NFC 17-102 standard in an independent laboratory accredited COFRAC
Pending UL Certification
Installation:
what you should know
- All lightning rod ESE should be installed on the highest point, fitted on a (or several) stainless steel mast(s) 6.5 feet (2m) above any other elements on the roof.
- Each lightning rod should be equipped with two down conductors, made of tinned copper, and fixed according to approved standards (UL96A or NFPA 780). If the building i made of conducting material, it can also be used as a down conductor.
- Each down conductor should be equipped with its proper accessories (control junction, protective tube, lightning earthing marker).
What Active 4D®
means to you
Protection
Early streamer emission (ESE) lightning conductor composed of 2 devices: Impulse and power device. Giving you up to 99% of protection in a radius of 262 feet (80m).
Analysis
The user can monitor in real-time, change the settings and control the Active 4D® via a network connection.
Detection
Storm activity measurement through 2 electrostatic field sensors.
Connectivity
Compatible with all Stormn You applications.
E-meter
A built-in lightning meter with time and date stamp captures the lightning currents.
High-quality materials
Built to last, superior design and high manufacturing standards
Storm
n You + Active4D®
How it works
n You network.
3 real-time alert levels
Lightning strikes
Weather conditions
Electrostatic field measurements
Stormn You electronic boxes

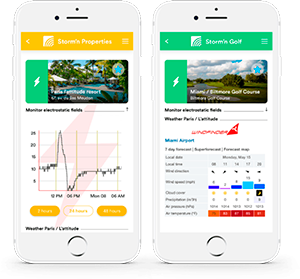

Products developed within the Stormn You ecosystem are specifically designed to communicate with Stormn You mobile applications.
Electronic box package
One Activ’Control module for communication with the lightning Rod.
One Rapsberry Pi with 3G Key for communication between the Activ’Control module and the network.
One power module with a 5Ah battery able to maintain auxiliary power for at least 7 hours when the main power is down.

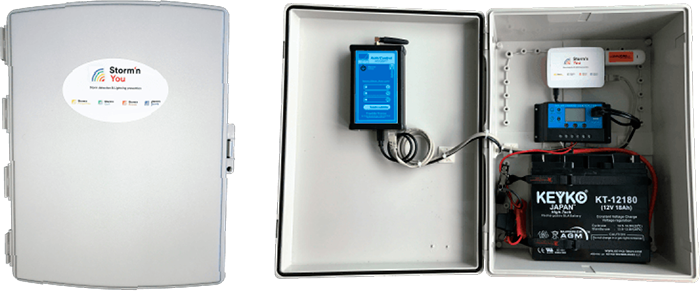

Solar powered electronic box package
One Activ’Control module for communication with the lightning Rod.
One Rapsberry Pi with 3G Key for the communication between the Activ’Control module and the network.
One power module with a 50W solar panel and a 18Ah battery able to maintain auxiliary power for at least 16 hours without the presence of sunlight.
